3.2. DNS Express¶
The zone example.com is served from the high performance authoritative resolver.

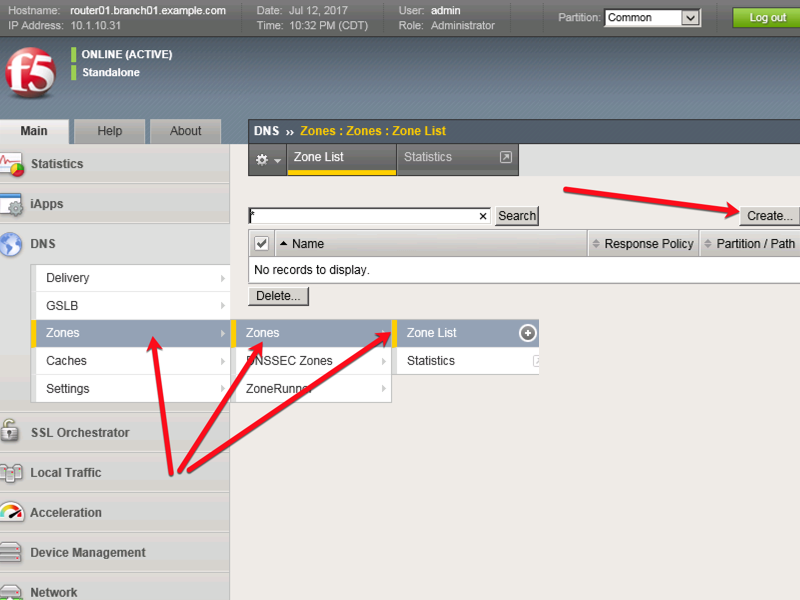

Navigate to DNS ›› Zones : Zones : Zone List

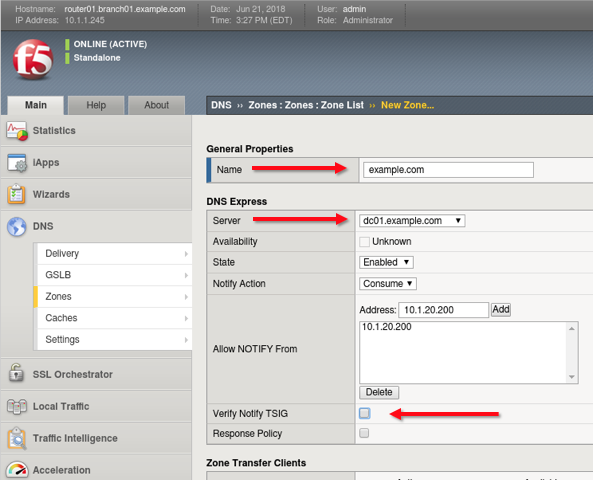

Create a DNS Express zone according to the following table:
| Setting | Value |
|---|---|
| Name | example.com |
| Server | dc01.example.com |
| Allow NOTIFY From | 10.1.20.200 |
| Verfiy Notify TSIG | disable (uncheck box) |
https://router01.branch01.example.com/tmui/Control/jspmap/tmui/dns/zone/create.jsp
TMSH
tmsh create ltm dns zone example.com { dns-express-allow-notify add { 10.1.20.200 } dns-express-notify-tsig-verify no dns-express-server dc01.example.com }
